Note: If you have a ballast that is not listed on this site, email us at comments@electrical101.com

Parallel ballasts use a single wire for individual and common connections to the pins at each end of a fluorescent tube. A shunted lampholder connects the lamp pins together. When using non-shunted (series) lampholders for parallel wiring, the push-in connectors on each side of the lampholder need to be wired together. Generally instant start ballasts are wired in parallel.

2 and 3 Lamp Parallel Ballast Wiring

2 and 3 lamp parallel ballasts use blue wires for individual connections, and red wires for common connections. Black wire is for line voltage and white wire for neutral. A parallel ballast uses a single wire which connects from the ballast to each of the lamp terminals.

Parallel Ballast Wiring Diagrams

Parallel Ballast Wiring

2 Lamp Parallel Ballast Wiring Diagram

2 Lamp Parallel Ballast Wiring Diagram

2 Individual wires, 1 common wire

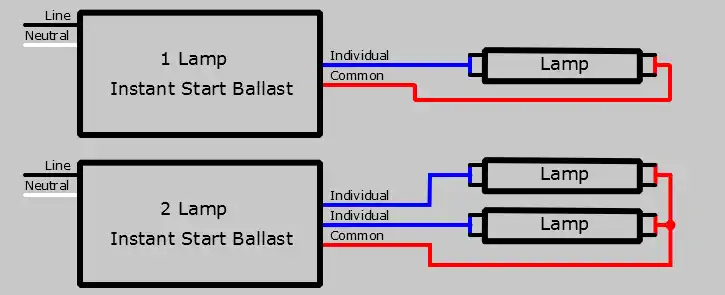

3 Lamp Parallel Ballast Wiring Diagram (2 Ballasts)

3 Lamp Parallel Ballast Wiring Diagram (2 Ballasts)

One 2 lamp and one 1 lamp ballast


4 Lamp Parallel Ballast Wiring Diagram

4 Lamp Parallel Ballast Wiring Diagram

4 Individual wires, 2 common wires

4 lamp parallel ballasts and 2 lamp series ballasts use blue and red wires for individual connections, and yellow wires for common connections.

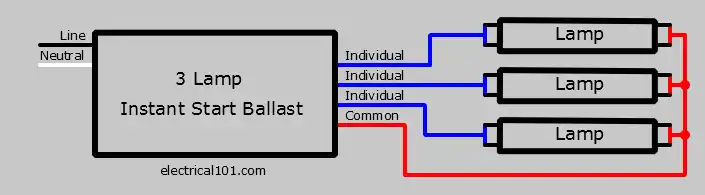

3 Lamp Parallel Ballast Wiring Diagram

3 Lamp Parallel Ballast Wiring Diagram

3 Individual wires, 1 common wire
