4 Lamp Rapid Start Ballast

Factory wiring

4 lamp series magnetic ballasts should be replaced with a 4 lamp parallel electronic ballast. Each lampholder has four separate connections.

  1. Connect each of the individual blue wires from the parallel ballast to each pair of the lampholder individual wires (red and blue) of lamps 1 and 2.
  2. Connect each of the individual red wires from the parallel ballast to each pair of the lampholder individual wires (red and blue) of lamps 3 and 4.
  3. Connect one of the common yellow wires from the parallel ballast to the yellow pair of lampholder common wires of lamps 1 and 2. Connect the other common yellow wire from the parallel ballast to the yellow pair of lampholder common wires of lamps 3 and 4.

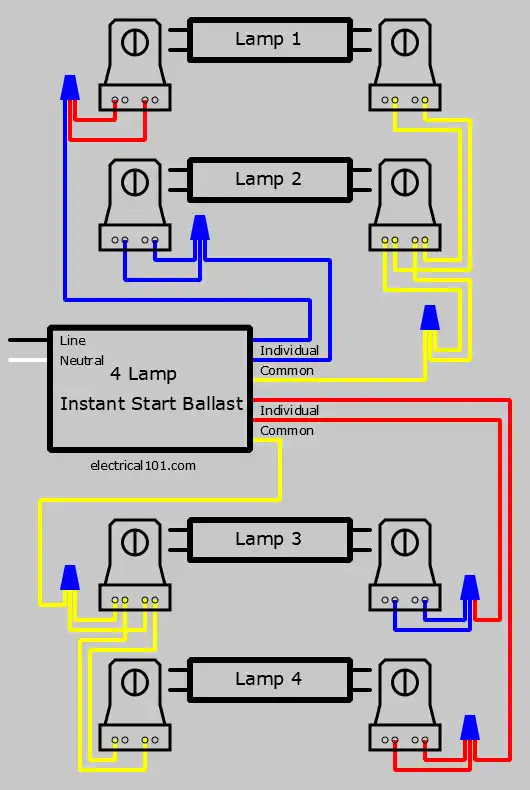

After 4 Lamp Rapid Start Ballast is Replaced with Instant Start

After 4 Lamp Series Ballast is Replaced

Replace 4 Lamp Series with Parallel Ballast Wiring Diagram

How to Replace 4 Lamp Series Ballast with Parallel
